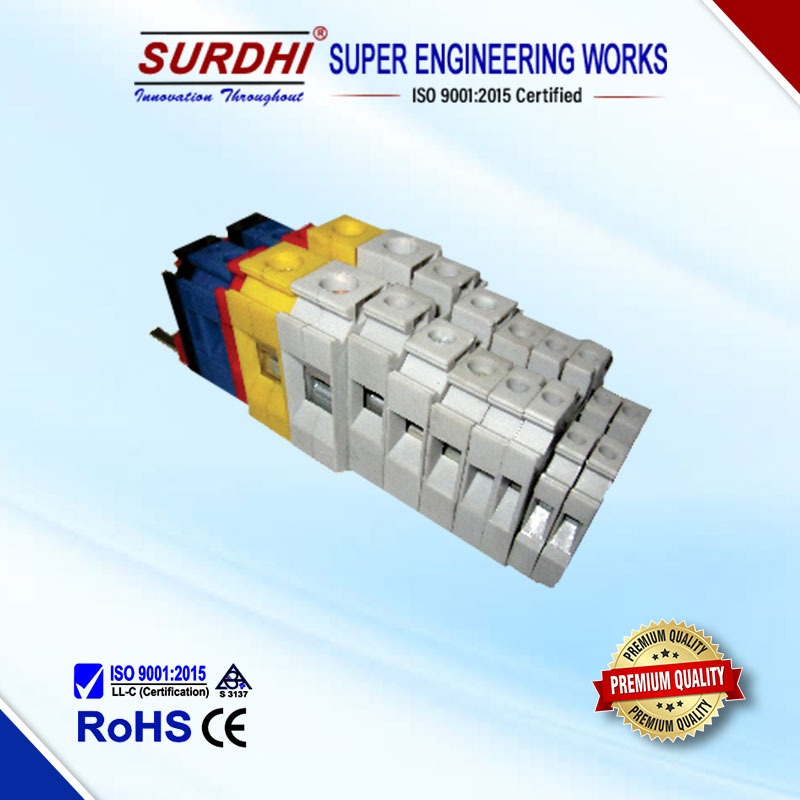

Terminal Blocks

Terminal Blocks

The terminal block is ideally demanded for its feature of providing a free choice of connection technology. To meet the specific requirements of the application areas, the array includes screw, spring-cage, push-in, fast or bolt connection types. The terminal blocks can be combined with different connecting technologies. The double function shaft also ensures testing and bridging facility.

The cost-effectiveness is also one of the major aspects that have enhanced the market demand. Moreover, Super Engineering Works is reckoned as one of the prominent Terminal Block Manufacturers, Suppliers and Exporters from India.

In Stock

 Technical Features

  • Standard : 13947 Pt-2, 1993
  • Suitable Terminal 2.5 mm, 4 mm, 6 mm, 10 mm, 16 mm, 25 mm, 35 mm
  • Insulation level : 3 KV for 1 minute
  • Mounting Arrangement : Din Rail and Dov rail mounting facility.
SDV-PTB 2.5

800V, 26A, 2.5 sq.mm. Wire Size
H-40.5 (1.6″), W-42 (1.65″), T-65(0.24″)
End Plate : SDV-PTB-NS
Available Colour : Red, Gray, Blue, Yellow, Black

SDV-PTB 16

800V, 82A, 16 sq.mm. Wire Size
H-51 (2.015″), W-46 (1.8″), T-11.5(0.45″)
End Plate : SDV-PTB-Y
Available Colour : Red, Gray, Blue, Yellow, Black

SDV-PTB 4

800V, 32A, 4 sq.mm. Wire Size
H-47.5 (1.86″), W-45.7 (1.8″), T-6.8(0.26″)
End Plate : SDV-PCTB-X
Available Colour : Red, gray, Blue, Yellow, Black

SDV-PTB 25

800V, 100A, 25 sq.mm. Wire Size
H-55.6 (2.19″), W-46 (1.8″),T-11.9(0.468″)
End Plate : SDV-PCTB-Z
Available Colour : Red, Gray, Blue, Yellow, Black

SDV-PTB 6

800V, 44A, 6 sq.mm. Wire Size
H-47.5 (1.86″), W-45.7 (1.8″), T-8(0.31″)
End Plate : SDV-PCTB-X
Available Colour : Red, Gray, Blue, Yellow, Black

SDV-PTB 35
800V, 135A, 35 sq.mm. Wire Size
H-57 (2.25″), W-50.3 (1.98″), T-17.8(0.700″)
End Plate : NOT REQUIRED (INBUILT)
Available Colour : Red, Gray, Blue, Yellow, Black
SDV-PTB 10

800v, 61A, 10 sq.mm. Wire Size
H-47.5 (1.86″) W-45.7 (1.8″), T-10(0.39″)
End Plate : SDV-PCTB-X
Available Colour : Red, Gray, Blue, Yellow, Black

SDV-PEC

End Clamp Polymide For C/G Channel
Available Colour: Gray
