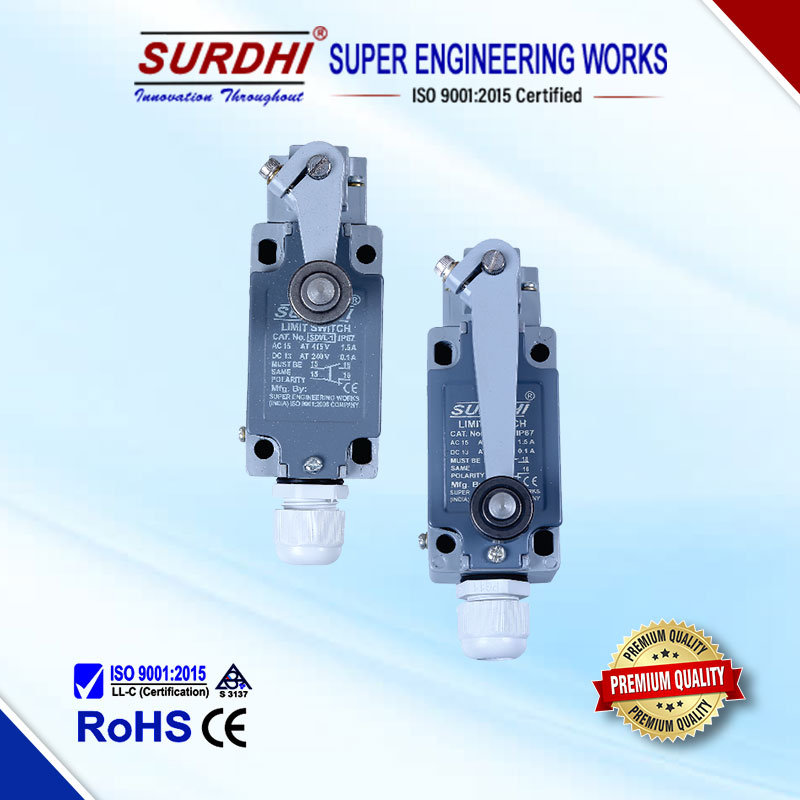

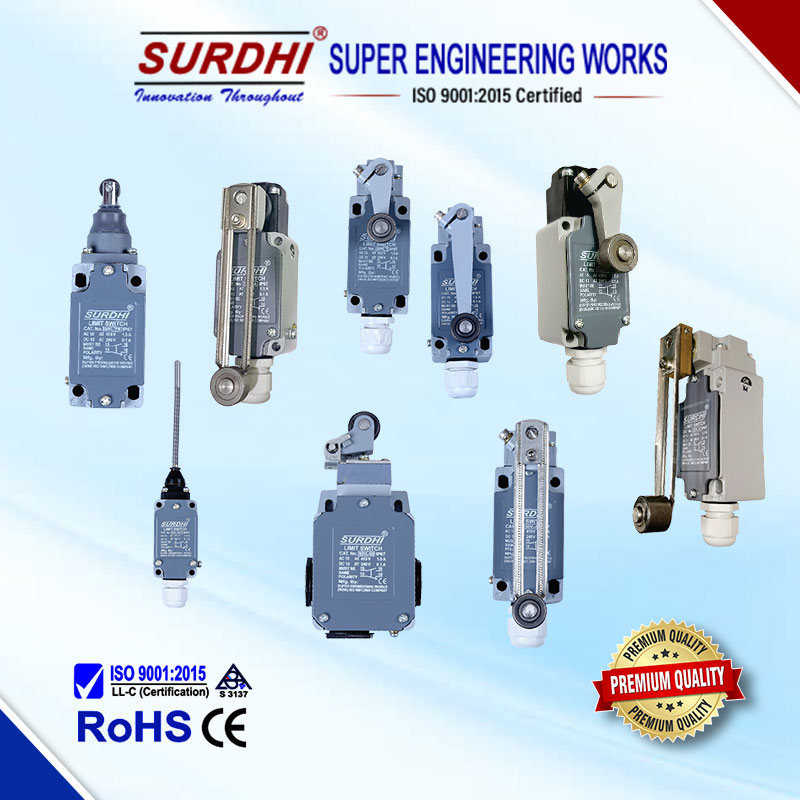

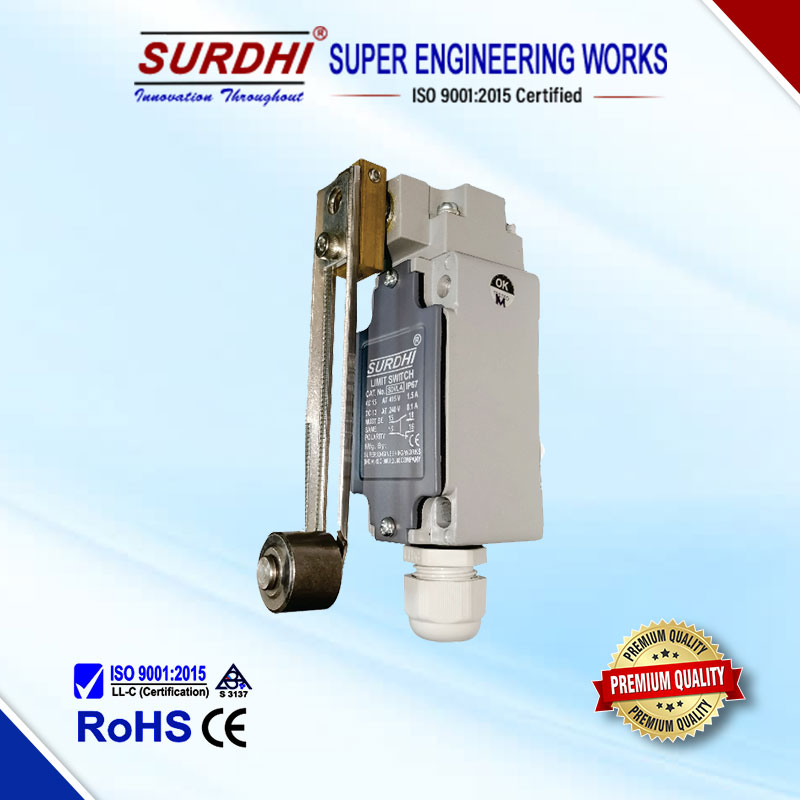

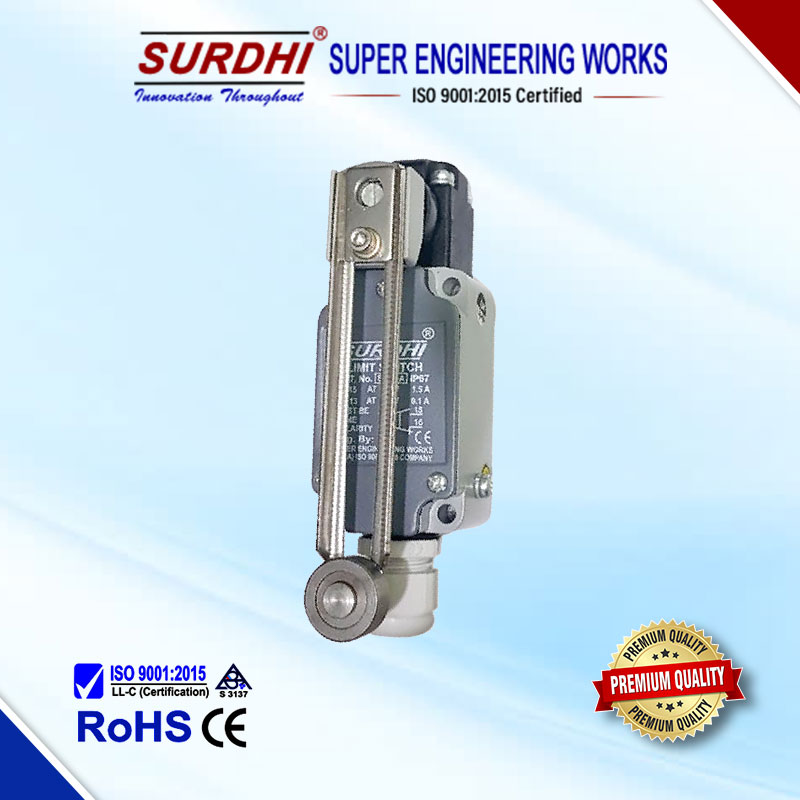

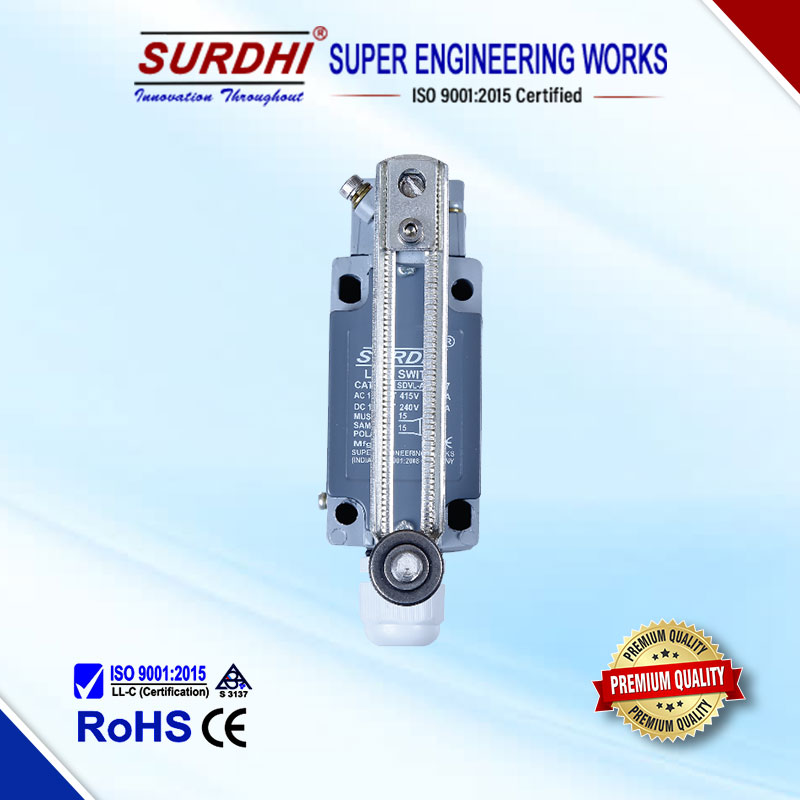

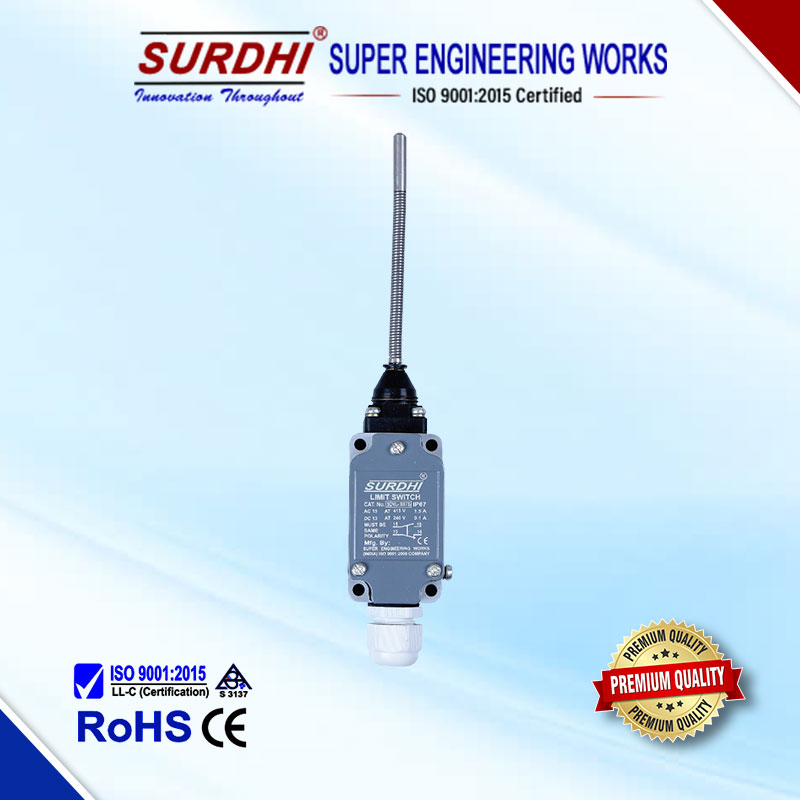

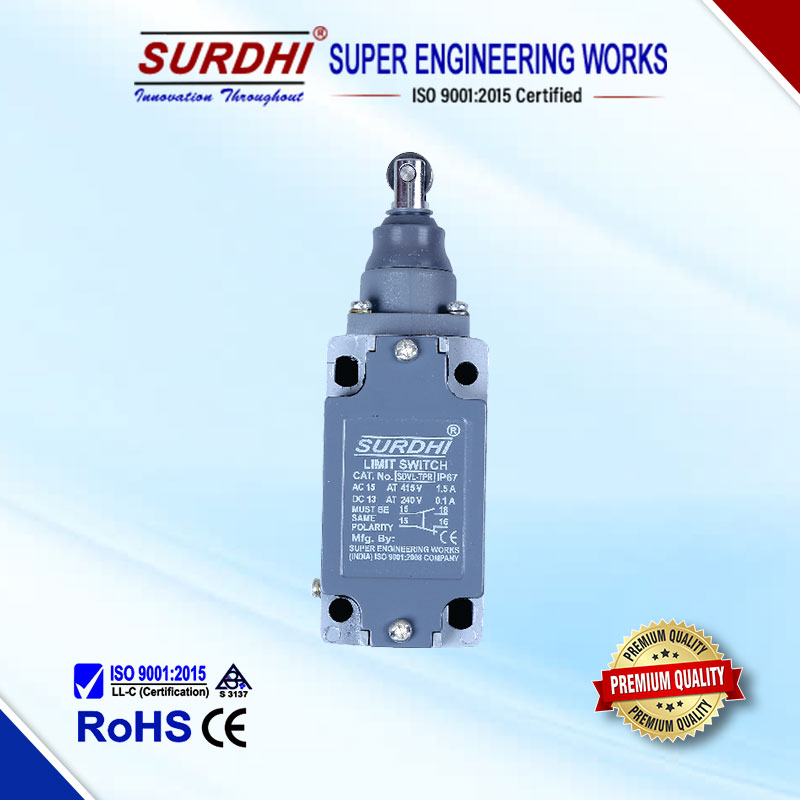

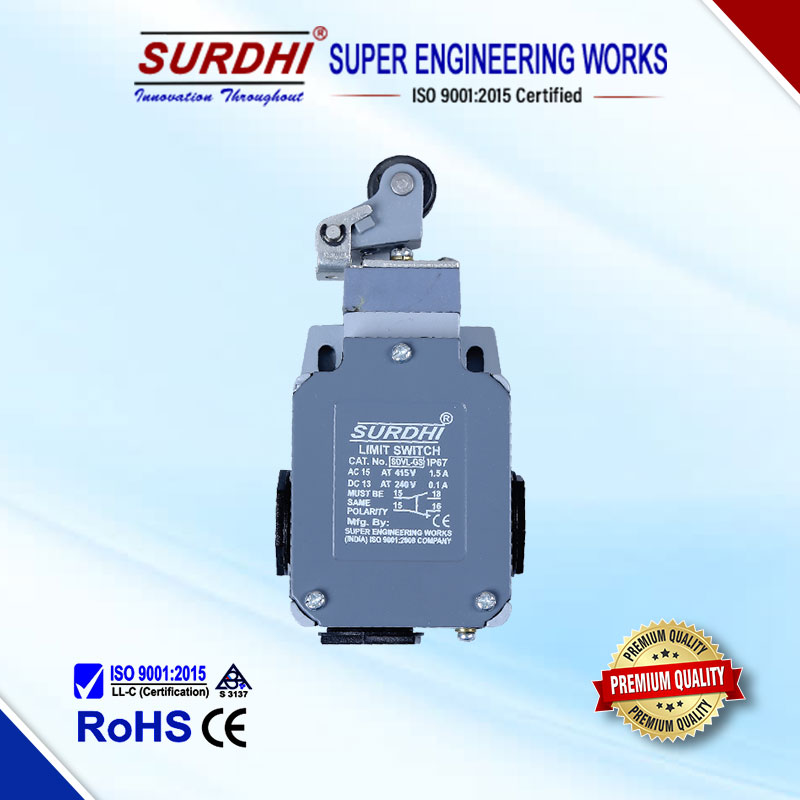

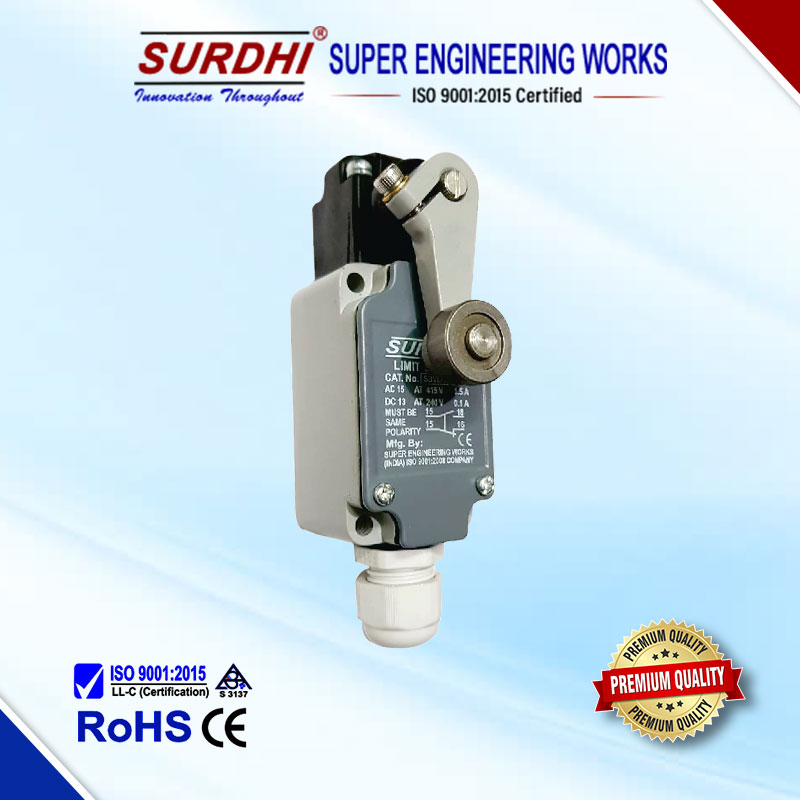

Oil Tight Limit Switches

Oil Tight Limit Switches

Super Engineering Works is a trusted name in the field of electrical components, especially when it comes to Limit Switches. We manufacture and supply highly advanced Limit Switches that are made from premium quality materials that offer excellent durability and long service life to them. Designed to convert mechanical motion on switch toggle into a electrical control signal; our Limit Switches have found application in variety of industrial applications. These Limit Switches are tested by experts at par with internationally accepted quality and performance norms. Our switches can function flawlessly in extreme temperature range i.e., -20 Degrees Celsius to +60 Degree Celsius.

In Stock

Salient Features

  • Liberal spacing is provided around the terminal for easy wiring.
  • The enclosure is compact, dust & vermin proof with pressure die cast aluminium.
  • The switches with IP-67 protection are completely oil tight, water tight with a shaft
  • seal between the lever and the Dust Proof.
  • These are designed for accuracy operation, Long mechanical life and to keep operation safety at a temperature – 200C to + 650C.
  • These are having an outstanding long mechanical life of 20 million switching operations.
  • The mechanical switching accuracy is maintained 0.01 mm even after 10 thousands switching operation.

Specifications:

  • Utilization Category: A C 15 and DC 13 as per 60947-5-1
  • Thermal Current lth: 10A
  • Insulation Voltage (Ui): 6 00V AC 240 DC
  • Mechanical Life: 2 0 million operations
  • Terminal Capacity: 2.5mm2/0.75mm2 solid or stranded conductors
  • Enclosure: Aluminium Pressure die cast
  • Contact Block: 1 NC + 1 NO, snap action
  • Connection: Screw terminals, 1 cable entry for M20 X 1.5 mm

Features

  • Converts mechanical motion into electrical control signal
  • Made from industrial grade materials
  • Conforms to international quality / performance norms
  • High operational accuracy
  • Shock proof
  • Vibration proof
